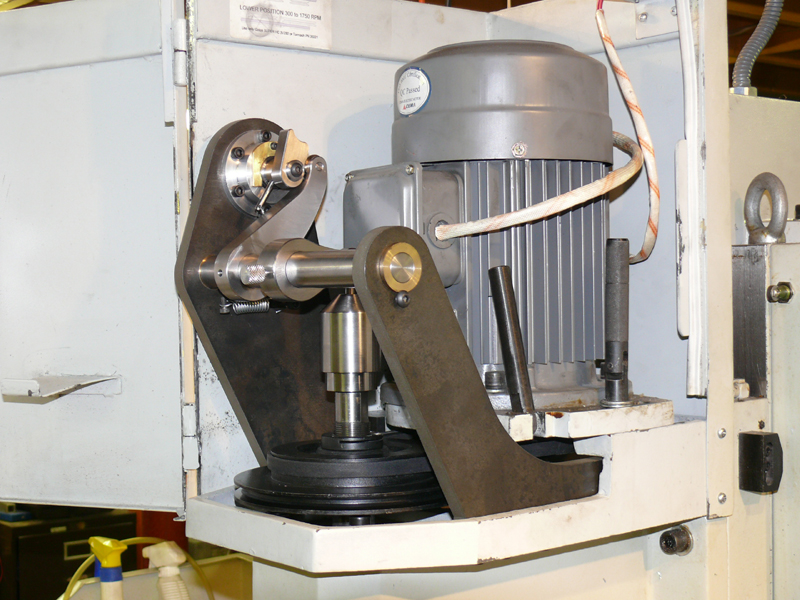

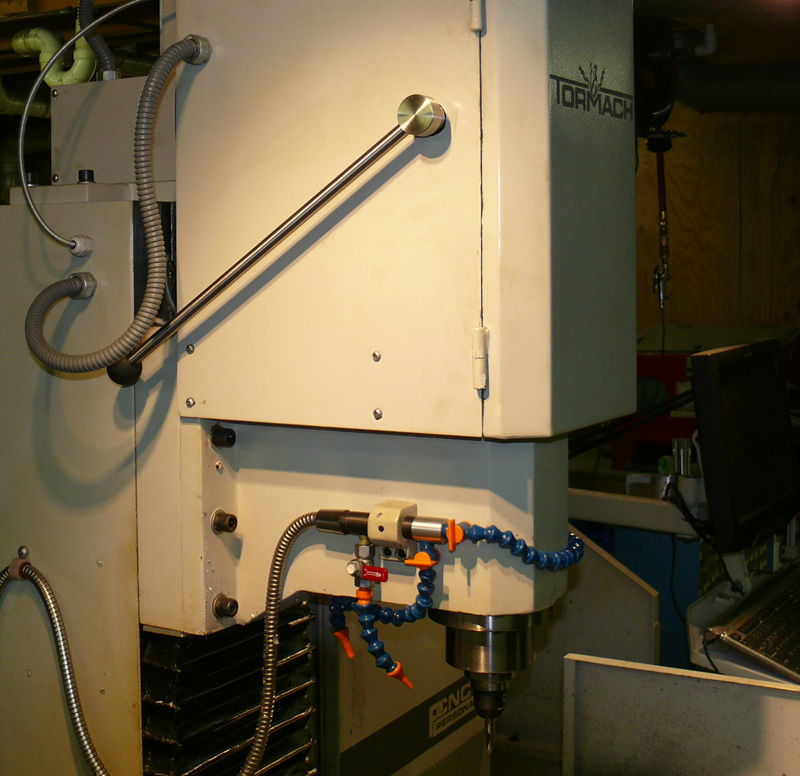

Lever Operated Drawbar |
|
For The Tormach PCNC1100 and the TTS Tooling System |
|
Patents Pending © 2010 SDM Fabricating Inc. |
|
Features: |
|
| 5-6 second tool changes | |
| 2600 lbs clamping force | |
|
Easy Preload adjustment |
|
|
No Air Compressor support needed
|
|
|
Unique Mechanical over hydraulic system reduces load on spindle bearings to just a few hundred pounds |
|
|
10-15 lbs of pull on handle to release tool
|
|
| Quick release and captive positions | |
 |
|
|
Drill Cycle with two tool changes You may have to allow media player add on to run in your browser This is a large file (25 mb) with HD content it may take some time to load |
|
The initial offering of this will be complete plans to build your own Lever Operated Drawbar. All Items can be made with the Tormach PCNC and a good engine lathe. A 1/4" keyway broach would be helpful. Modification to the original motor base casting is needed. So access to a second milling machine is also needed or a new casting can be purchased from Tormach. All engineering was done in Solid Edge and the file package will contain Drawing files of all parts in PDF , .dxf and .dft . All assembly and sub-assembly drawings. With shop notes assembly instructions and bill of materials. It is a fairly complex mechanism so a good mechanical understanding is needed as well as good machine skills. It is a good project and very rewarding when done. Not to mention the great improvement to an already great machine!
|
|
|
ON SALE Price $100.00 Download instructions will be emailed after purchase. File package is 30mb , 17mb zipped Purchase limits buyer to build one (1) Lever operated drawbar |
| For Questions contact 330-723-3098
|
|
