SDM  Tactical Target Sight

Fits popular .500" x 65 degree dovetail

                      Discontinued



Fits existing sight cuts with no change to front sight height

Rear face serrated 40 lpi to reduce glare

Notch milled at 2 degree angle forward for crisp sight picture

Radiuses on outside edges for Snag free operation

 # 8 set screw for firm hold

"U" notch works great with all "Dot" sights   Gold Bead , Tritium , fiber optic or white dot

 Square notch works great for "traditional" front sights

  "U" notch dim. .125" x .125"   Square notch dim. .125" wide x .090" deep



ORDER HERE

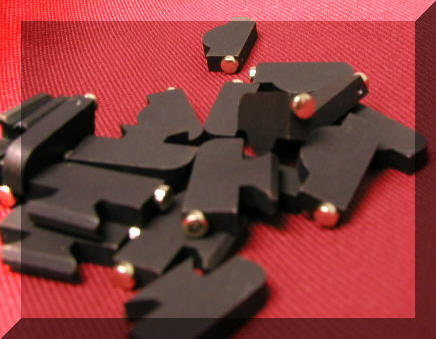

SDM Extra wide Dovetailed front sights  with optional gold bead

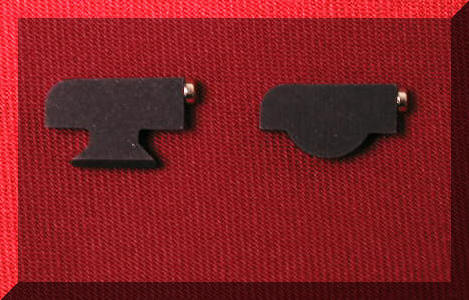

                    As They come                                                                     After a skilled installation

 Fits the popular .330" x 65 degree x .075 deep dovetail.

Dovetail dimensions  .330" x 65degree x .075" deep    Width (left to right )  is .600"  This will fill nearly any dovetail cut even flat tops

Blade dimensions  .125" wide x .245" tall and .615" long

Gold bead dimensions   Head  .125" diameter      Shank   .081" diameter x .160" long

Sight blank only                    $20.00

Sight blank w/gold bead       $45.00

Please note:

These are sight "blanks" They are not finished in any way they must be installed and "finished" by a skilled craftsman.



Description

Part Number

Price


.175 high , bead installed 175GBF $55.00
.185 high , bead installed 185GBF $55.00
.200 high , bead installed 200GBF $55.00
.245 Blank , bead not installed DTGB $45.00
.245 Blank Only DTO $20.00
14 Carat Bead Only GBO $25.00

New !  SDM Gold Bead Front Sight

for Smith & Wesson revolvers available now

Specs.

.250"  and .300" High  .125" wide

14 carat gold  bead

Available for Pinned in models and "Classic and DX " interchangeable sight systems



ORDER HERE



  For more information send email to  Gold bead@SDM
